Installation dimensions & basic sketches

Are you looking for installation dimensions or schematic sketches for our rolling grilles?

Please contact us or send us an email with your request – preferably with photos and sketches of the local situation.

We will gladly send you corresponding sketches for the standard installation – or find an individual solution for your “non-standard” situation.

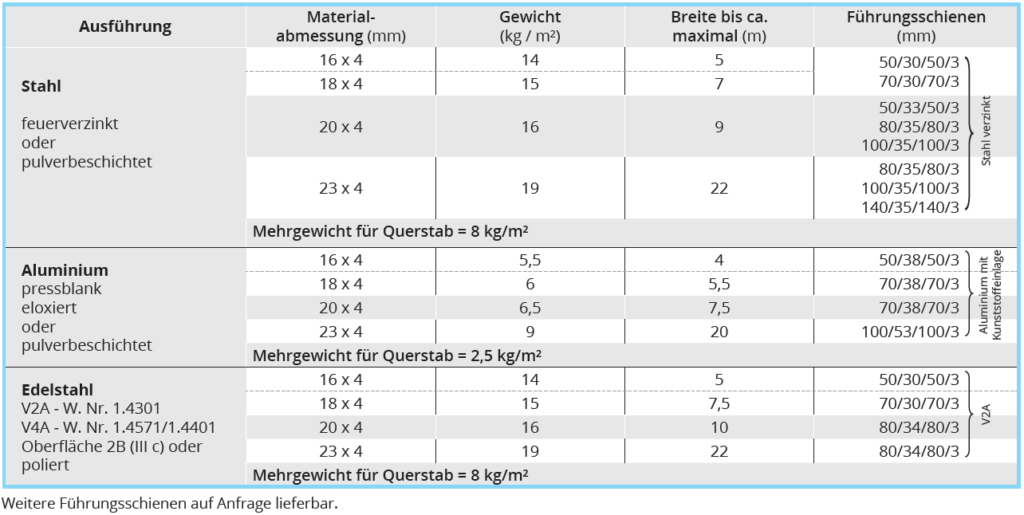

The width of the material is determined by the width of the folding grille – the wider the grille, the wider the flat material. In the following table you will find information regarding the possible designs for our folding grilles in honeycomb made of flat material. You will also find the appropriate guide rails for each profile.

We would be happy to calculate all installation data for you – please contact us !

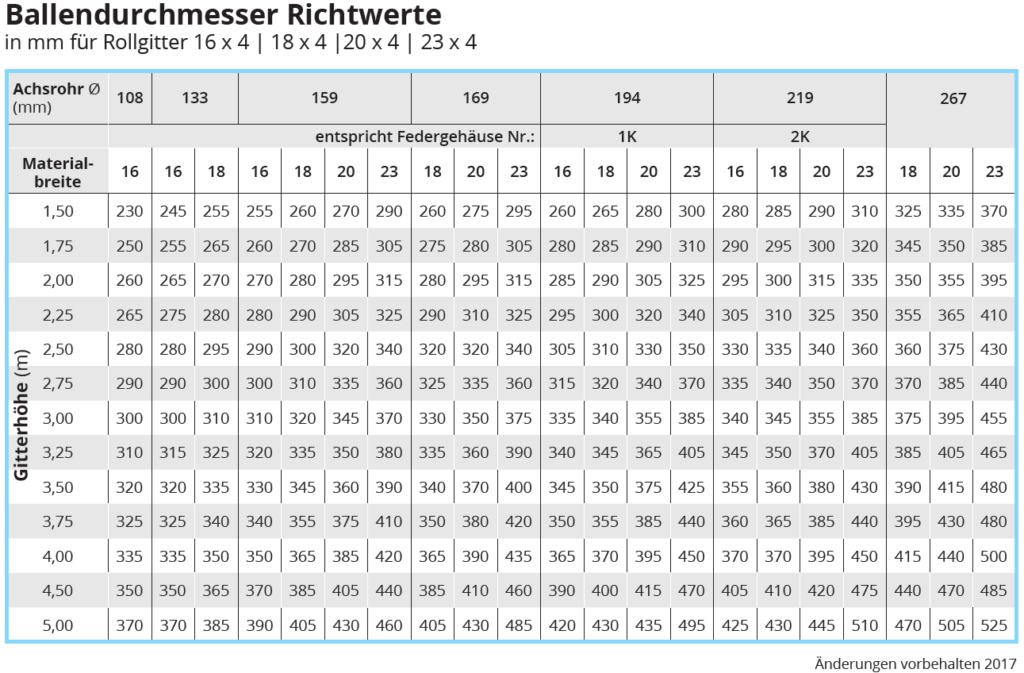

The rolled-up diameters of rolled-up folding grille depend on the shaft used and material width: 16, 18, 20 or 23 mm.

You don’t know which shaft and material thickness will be used in your project?

We would be happy to calculate all installation data for you – please contact us!

Guide rails
Robust U-profiles in steel, aluminium or stainless steel; at least 1% of gate width according to DIN 18358. Available with or without plastic guides.
Fastening of guide rails using angle brackets or underlining as rectangular tube or bracket.

Shaft / axle tube
The winding shaft is statically dimensioned according to the width of the gate; Max. deflection L/500.
Galvanised octagonal shafts or primed round steel tubes are used (in accordance with DIN EN 10219).

Bearing of the winding shaft is carried out using standard or angle brackets in galvanised steel or primed, statically dimensioned according to the weight of the system. Special brackets for ceiling and recess installation as required.

We manufacture boxes:
– as contact protection for automatic gate systems with clear height < 2500 mm
– as weather protection for external rollers incl. drive sheathing

If required, we deliver systems with tubular motors in the finished front element. The box and guide rails are color-coated in standard colors.
